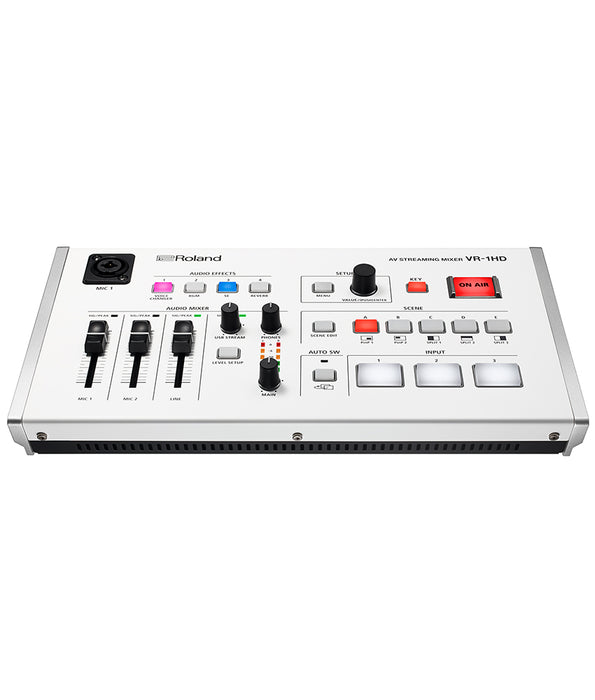

Pre-Owned Roland VR-1HD AV Streaming Mixer

Roland's VR-1HD lets content creators broadcast dynamic multi-camera livestreams, complete with amazing picture and sound that easily outshines 'standard' livestreams from a mobile phone or static webcam. Whether you're a creator, gamer, commentator or presenter, it's the easy way to livestream with high production standards.


VIDEO:
Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors:
VIDEO INPUT 1--3 connectors: HDMI type A x 3
* HDCP Supported.
* Multi-format Supported

Output Connectors:
MAIN connector: HDMI type A
* HDCP Supported
MONITOR connector: HDMI type A
* HDCP Supported
THRU connector: HDMI type A
* HDCP Supported
USB STREAM port: USB B type

Input formats:
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Output formats:
MAIN, MONITOR connectors:
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, XGA (1024 x 768/60 Hz) (*1), WXGA (1280 x 800/60 Hz) (*1), SXGA (1280 x 1024/60 Hz) (*1), FWXGA (1366 x 768/60 Hz) (*1), SXGA+ (1400 x 1050/60 Hz) (*1), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
(*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.

USB STREAM port:
854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Still Image:
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
* It can be loaded up to 2 files from USB memory at startup.

Video Effects:
Scene: PinP, Split, PbyP
Transition: Black fade, Mix fade, Motion
Key Composition: Luminance key, Chroma key
Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO:
Audio Processing: Sample rate: 48 kHz, 24 bits

Audio formats:
VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

Input Connectors:
VIDEO INPUT 1--3 connectors: HDMI type A
MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
LINE IN jacks: RCA phono type
USB STREAM port: USB B type

Output Connectors:
MAIN connector: HDMI type A
MONITOR connector: HDMI type A
LINE OUT jacks: RCA phono type
USB STREAM port: USB B type
PHONES jack: Stereo miniature phone type

Nominal Input Level:
MIC IN 1--2 jacks: -60--+10 dBu (Maximum input level: +28 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)

Input Impedance:
MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +18--+64 dBu)
LINE IN jacks: 15 k ohms

Nominal Output Level:
LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
PHONES jack: 92 mW + 92 mW (32 ohms)

Output Impedance:
LINE OUT jacks: 1 k ohms
PHONES jack: 10 ohms

Audio Effects:
Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer

Audio Player: Number of Players: 4
Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)COMMON SECTION

Connectors:
USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO (USB2.0): stereo 1 IN/1 OUT, Remote control)
DC IN jack

Functions:
Scene memory : 5
Panel lock function
EDID emulator
Auto switching (Auto scan, Beat sync switching, Video follow audio)

Power Supply: AC Adaptor

Current Draw: 2 A

Power Consumption: 24 W

Operation Temperature: +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions: 12-3/8 (W) x 6-11/16 (D) x 2-5/8 (H) inches
Weight: 3 lbs 9 oz

Accessories:
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord

*Pre-Owned items are sold as-is, sale is final*
